Fault Current Limiter (FCL)

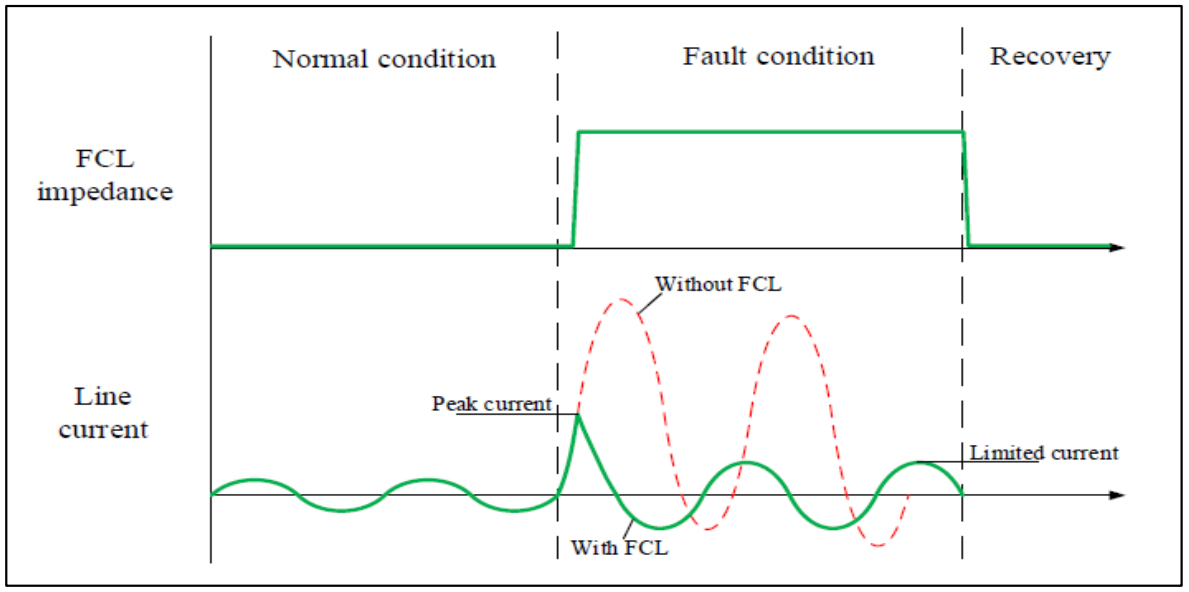

Fault Current Limiters (FCLs) act as an additional high impedance to limit high fault currents to an acceptable level. In normal operation, FCLs have almost no impedance and are "invisible" to the system. Unlike fuses or disconnectors, FCLs do not completely disconnect in fault case. After the fault current disappears, they can return to normal operation. Due to their very short reaction time, FCLs can act and reduce the short circuit current so that the circuit breaker can act in their nominal performance range, if needed. Typically, FCLs are used in low and medium voltage levels.


Technology Types

FCL can be classified in two major types, which can further be subcategorized per technology:

  • Non-superconducting FCL:

    • Saturable core FCL – they exploit the non-linear characteristics of ferromagnetic materials to realize a high inductance.
    • Solid state FCL – they use the high-power semiconductor device to realize a FCL and can be classified as either serial, bridge or resonance type.
  • Super conducting FCL (SFCLs):

    • Resistive type of SFCLs – uses the capability of the superconductor to change state from superconducting into resistive state known as the “superconductor quench”
    • Inductive type of SFCLs – works like a transformer with short superconducting secondary winding. The resistance of the secondary winding is the superconductor quench
    • Bridge type of SFCLs – uses power thyristors and power diodes to block fault currents if a fault occurs.

Components & enablers

  • Non-superconducting FCL:

    • Saturable core FCL – windings of conventional conductors, iron core, air-core reactor
    • Solid state FCL – solid state switch consisting of a configuration of semiconductor devices e.g SCR , GTO , IGBT , IGCT
  • Super conducting FCL (SFCLs)

    • Resistive type of SFCLs – air-core superconductor transformer and PWM converter
    • Inductive type of SFCLs – power semiconductors devices in parallel with a resistor or inductor
    • Bridge type of SFCLs – diodes and thysistor, DC reactor.

Advantages & field of application

By installing FCLs, system operators or commercial customers can optimise the system by application of standard solutions with specific (low) nominal short circuit currents. Major advantages include:

  • Reduction of the short-circuit current of the system, allowing the circuit breakers to act in their nominal performance range
  • Reduction of voltage sags and flicker due to the lower total source impedance
  • Reduction of harmonics due to the lower total source impedance.

Technology Readiness Level

In case of HV (145 kV and below):

  • Non-superconducting FCL : TRL 9
  • Super conducting FCL (SFCLs): TRL 3 - TRL 7 depending on technology types and voltage level

In case of HEV (245 kV or more): TRL 3


Research & Development

Current fields of research: Superconducting materials, compactness, self-triggering, increasing maximum voltage level, time to return to normal operation, cost reduction.


Best practice performance

Voltage rating: up to 138 kV

Current rating: up to 6.3 kA

Limiting capability: 210 kA (RMS)


Best practice application

USA, Ohio

2011

Description
Designing, building and testing of an FCL prototype in Tidd substation of American Electric Power.

Design
A three phase 138 kV, 1300 A saturable iron-core type 2G HTS FCL unit that reduces a 20 kA fault current by 43 % and instantaneously recovers under load was installed on the LV side of a 345 kV/138 kV transformer to protect the feeder.

Results
By employing fault current limiters, the electrical installed equipment is protected.

UK, Newhaven, East Sussex

2013

Description
The Energy Technologies Institute worked on implementing an FCL in a main substation of UK Power Networks to supress damaging currents and provide network capability and reliability.

Design
A novel design was demonstrated that provides a simple, reliable and low maintenance solution and is fully scalable to other voltage levels. The concept of magnetic flux alteration for the iron core saturation is used. Instant, self-triggering response to new faults and quick recovery after clearance without interruption in the network as well as being able to cope with multiple consecutive faults are all benefits of the chosen design.

Results
Shorter connection times and reduced costs of connection with increasing shares of embedded generation. Increased efficiency and flexibility and resilience of the electric network is achieved.
